Product Information

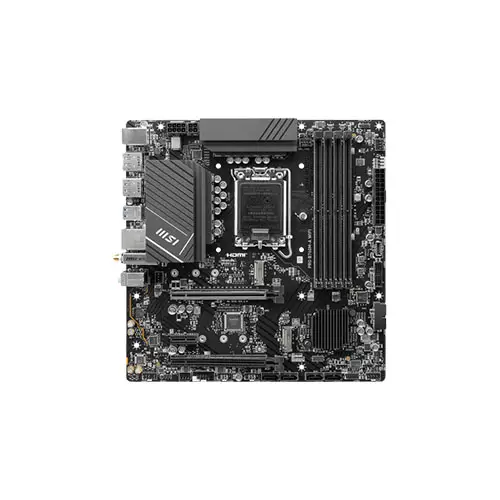

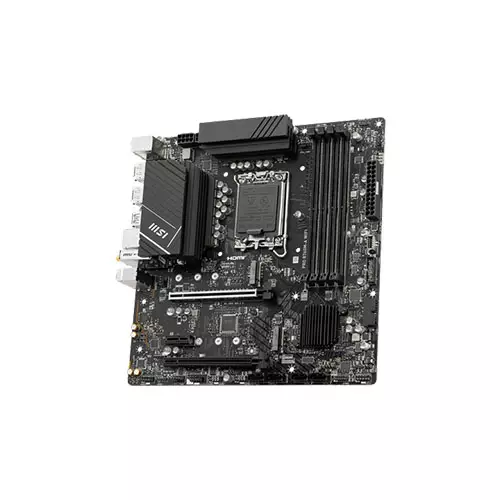

MSI PRO B760M-A WIFI DDR5 12TH/13TH GEN MOTHERBOARD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Pentium® Gold and Celeron® Processors
LGA 1700
Mainboard
Memory
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Storage
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Graphics
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
Networking & Connectivity
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Audio & Microphone
7.1-Channel High Definition Audio
Ports
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
DisplayPort
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
Special Features
Others
Support for Windows® 11 64-bit, Windows® 10 64-bit
Physical Specification
243.84mmx243.84mm
Warranty Information
PRODUCT DESCRIPTION
MSI PRO B760M-A WIFI DDR5 MOTHERBOARD PRICE IN BD
The MSI PRO B760M-A WIFI DDR5 12th/13th Gen Motherboard, a high-performance motherboard designed for optimal compatibility and performance with 12th and 13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors. With its LGA 1700 socket, this motherboard provides excellent support for the latest generation of CPUs. The MSI PRO B760M-A WIFI features four DDR5 memory slots, allowing for a maximum memory capacity of 192GB. It supports DDR5 memory with speeds ranging from 4800MHz to 6800+MHz (OC), providing fast and efficient performance. The motherboard also supports Intel® XMP 3.0 OC and Dual-Controller Dual-Channel mode for enhanced memory performance. For graphics connectivity, the motherboard offers two HDMI™ ports and two DisplayPort ports. These ports support HDMI™ 2.1 and DP 1.4 standards, delivering a maximum resolution of 4K at 60Hz. Please note that the availability of these ports depends on the CPU installed, as integrated graphics are required. In terms of expansion slots, the MSI PRO B760M-A WIFI provides two PCI-E x16 slots, one PCI-E x1 slot, and three M.2 slots. The PCI-E x16 slots support PCIe 4.0 x16 and PCIe 3.0 x1 speeds, while the M.2 slots support PCIe 4.0 x4 and SATA modes. This allows for flexible storage and expansion options. The motherboard includes various connectivity options, such as USB 2.0, USB 3.2 Gen1 Type A, USB 3.2 Gen1 Type C, and USB 3.2 Gen2 Type A ports. It also features a Realtek® RTL8125BG 2.5G LAN for high-speed wired networking and Intel® Wi-Fi 6E for fast wireless connectivity. The Wi-Fi module supports MU-MIMO TX/RX and operates on 2.4GHz, 5GHz, and 6GHz* (160MHz) frequencies. With the Realtek® ALC897 Codec, the motherboard delivers 7.1-channel high-definition audio for an immersive sound experience. It also includes a range of internal I/O connectors for easy installation and customization. The MSI PRO B760M-A WIFI is compatible with Windows® 11 64-bit and Windows® 10 64-bit operating systems, ensuring broad software compatibility. In summary, the MSI PRO B760M-A WIFI DDR5 12th/13th Gen Motherboard offers excellent performance, expandability, and connectivity options. With its advanced features and support for the latest technologies, it is an ideal choice for gamers, content creators, and PC enthusiasts. Get the best price in BD Techland and enjoy a seamless computing experience with this feature-packed motherboard.
