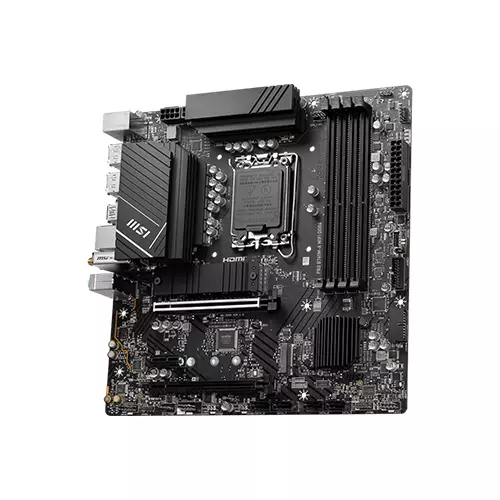

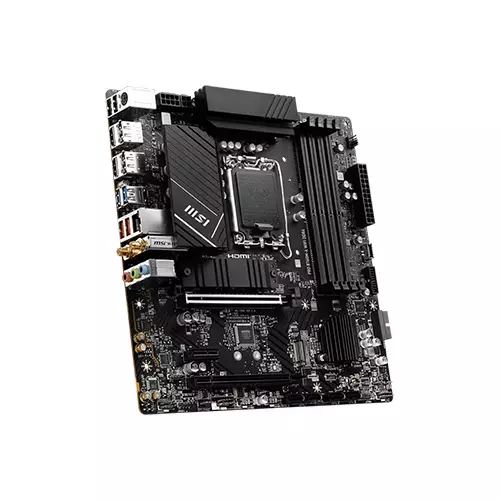

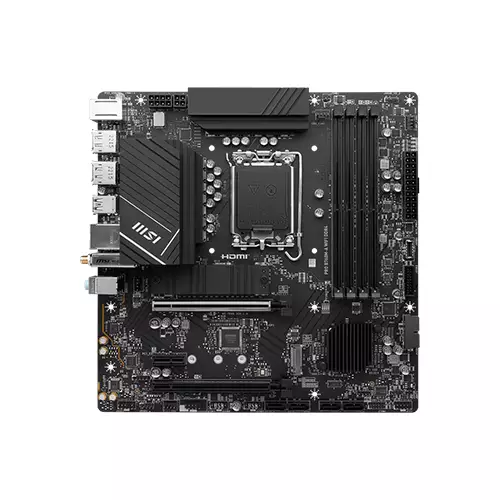

MSI PRO B760M-A WIFI DDR4 12TH/13TH GEN MOTHERBOARD

MSI PRO B760M-A WIFI DDR4 12TH/13TH GEN MOTHERBOARD

MSI PRO B760M-A WIFI DDR4 12th/13th Gen Motherboard. This motherboard is equipped with an Intel B760 chipset and supports 12th/13th Gen Intel Core processors, Pentium Gold, and Celeron processors with LGA 1700 socket. It has four DDR4 memory slots with a maximum capacity of 128GB and supports a wide range of memory speeds up to 5333MHz in overclocking mode. The motherboard supports dual-channel mode and Intel Extreme Memory Profile (XMP). The onboard graphics include 2 HDMI 2.1 ports and 2 DisplayPort 1.4 ports, supporting a maximum resolution of 4K 60Hz, available only on processors featuring integrated graphics. The expansion slots include 2 PCIe x16 slots, 1 PCIe x1 slot, and 3 PCIe slots supporting various data transfer speeds up to PCIe 4.0 x16. The motherboard features 2 M.2 slots and 4 SATA 6G ports supporting RAID 0, 1, 5, and 10. The motherboard offers various USB ports, including 2 USB 2.0 ports, 6 USB 3.2 Gen1 Type-A ports, 1 USB 3.2 Gen1 Type-C port, and 2 USB 3.2 Gen2 Type-A ports. The motherboard features Realtek RTL8125BG 2.5G LAN and Intel Wi-Fi 6E with MU-MIMO TX/RX supporting up to 2.4Gbps and Bluetooth 5.3.

The audio is powered by the Realtek ALC897 codec with 7.1-channel high definition audio. The motherboard includes multiple internal connectors, including power connectors, fan connectors, front panel connectors, RGB LED connectors, and a TPM pin header. It also features EZ Debug LED and various back panel ports, including USB ports, audio connectors, and LAN ports. The motherboard supports Windows 11 64-bit and Windows 10 64-bit and has a micro-ATX form factor with dimensions of 243.84mm x 243.84mm. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of MSI Motherboard available at Techland BD is well recognized. The large selection of MSI Motherboard available at Techland BD is well recognized.
