Product Information

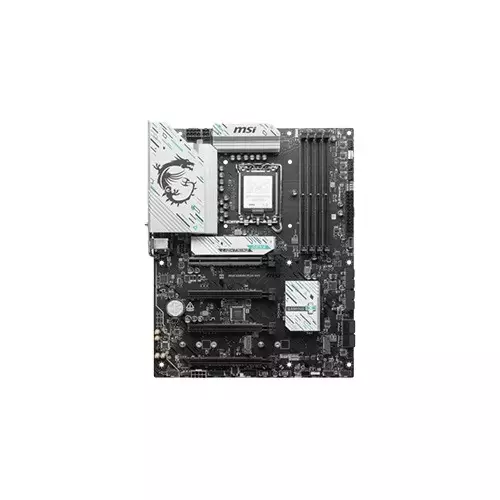

MSi B860 Gaming Plus Wifi Intel Core Ultra LGA1851 DDR5 ATX Motherboard
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Mainboard
Memory
Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Storage
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
Networking & Connectivity
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Audio & Microphone
7.1-Channel High Definition Audio
Ports
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C,
with a maximum resolution of 4K@120Hz / 8K@60Hz*
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
1x USB 5Gbps Type C (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
Support HDMI 2.1, maximum resolution of 4K 60Hz*
Physical Specification
Technical Info
Warranty Information
PRODUCT DESCRIPTION
MSi B860 Gaming Plus WiFi Intel Core Ultra LGA1851 DDR5 ATX Motherboard Price in Bangladesh
MSi B860 Gaming Plus WiFi ATX Motherboard, now available at Tech Land BD. Built for Intel Core Ultra Series 2 processors and featuring the latest LGA1851 socket, this motherboard delivers cutting-edge performance, advanced connectivity, and high-speed data handling. The powerful Intel B860 chipset supports up to 256GB of DDR5 memory, with speeds reaching up to 8600+ MT/s (OC) for unmatched multitasking and overclocking potential. Designed with gamers and enthusiasts in mind, it comes equipped with three M.2 slots (including PCIe 5.0 x4 support), four PCIe x16 slots, and four SATA 6G ports, giving you flexible storage and expansion options. Graphics and display outputs are top-tier too, thanks to HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4 Type-C—supporting up to 8K@60Hz or 4K@120Hz resolution for immersive visuals. Connectivity is seamless with Intel Wi-Fi 7 supporting tri-band speeds up to 5.8Gbps, plus Realtek 5Gbps LAN for ultra-fast wired connections. A total of 14 USB ports (including USB 10Gbps Type-A and Type-C) ensures compatibility with all your peripherals. The board also features ARGB and RGB headers, multiple fan connectors, and high-definition 7.1 audio for a rich gaming and streaming experience. Whether you're a gamer, content creator, or performance enthusiast, the MSi B860 Gaming Plus WiFi offers everything you need for a future-ready build. Don’t miss out—order now from Tech Land BD and unlock the full power of your Intel Ultra processor!
What CPUs are compatible with this motherboard?
It supports Intel Core Ultra Series 2 processors with LGA1851 socket.
Does this motherboard support Wi-Fi?
Yes, it comes with Intel Wi-Fi 7 pre-installed, offering up to 5.8Gbps speed.
How much RAM can it support?
It supports up to 256GB DDR5 RAM, with overclocking up to 8600+ MT/s.
