Product Information

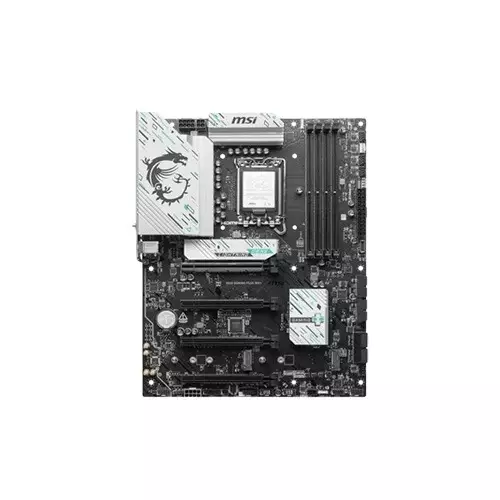

MSi B860M Gaming Plus Wifi Intel Core Ultra LGA1851 DDR5 Micro ATX Motherboard
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Mainboard
Memory
Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC)
MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Storage
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
Networking & Connectivity
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Audio & Microphone
7.1-Channel High Definition Audio
Ports
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB
Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
1x USB 5Gbps Type C (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
Support HDMI 2.1, maximum resolution of 4K 60Hz*
Physical Specification
Technical Info
Warranty Information
PRODUCT DESCRIPTION
MSi B860M Gaming Plus WiFi Intel Core Ultra LGA1851 DDR5 Micro ATX Motherboard in Bangladesh
MSi B860M Gaming Plus WiFi Micro ATX Motherboard, designed for the latest Intel Core Ultra Series 2 processors with LGA1851 socket. Whether you're building a high-performance workstation or a space-saving gaming rig, this motherboard offers the perfect balance of performance, features, and future-ready connectivity. Powered by the Intel B860 chipset, it supports DDR5 memory up to 256GB, with ultra-fast speeds reaching 8600+ MT/s (OC). Storage is no compromise either, with three M.2 slots—including PCIe 5.0 x4 support for lightning-fast NVMe SSDs—and four SATA 6G ports for traditional storage. Despite its Micro ATX size, the board is packed with premium features: Intel Wi-Fi 7 for high-speed wireless connectivity up to 5.8Gbps, Realtek 5Gbps LAN for reliable wired networking, and Thunderbolt 4, HDMI 2.1, and DisplayPort 1.4 for stunning 4K or even 8K visuals. You'll also find extensive connectivity with 14 USB ports, including USB 10Gbps Type-A and Type-C, and ARGB/RGB headers for full customization. Advanced cooling support, high-definition 7.1 audio, and support for Intel XMP 3.0 make this board a go-to choice for gamers and creators alike. Now available at Tech Land BD, the MSi B860M Gaming Plus WiFi brings top-tier features in a compact footprint—perfect for powerful, space-efficient builds.
What CPU does this motherboard support?
It supports Intel Core Ultra Series 2 processors using the LGA1851 socket.
Is Wi-Fi built-in?
Yes, it includes Intel Wi-Fi 7, pre-installed in the M.2 (Key-E) slot.
How much RAM can I install?
You can install up to 256GB DDR5 RAM, with speeds up to 8600+ MT/s (OC).
