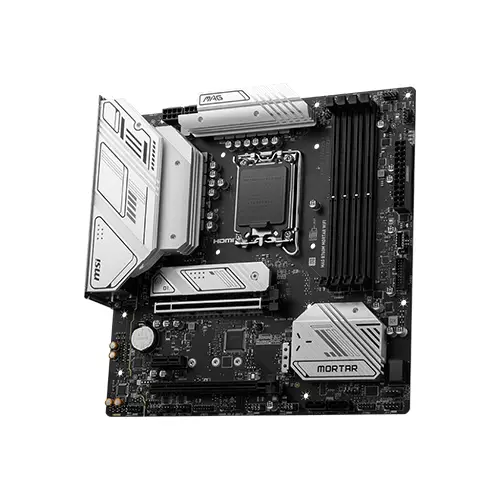

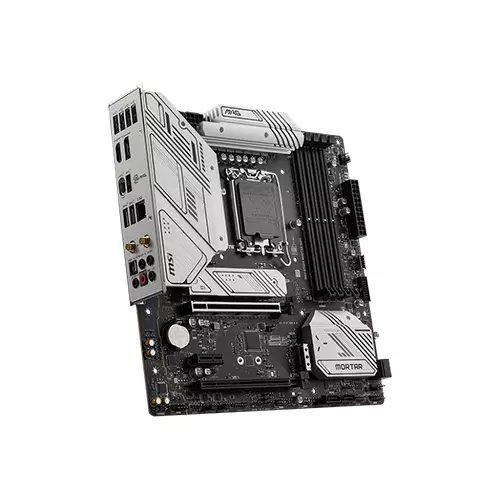

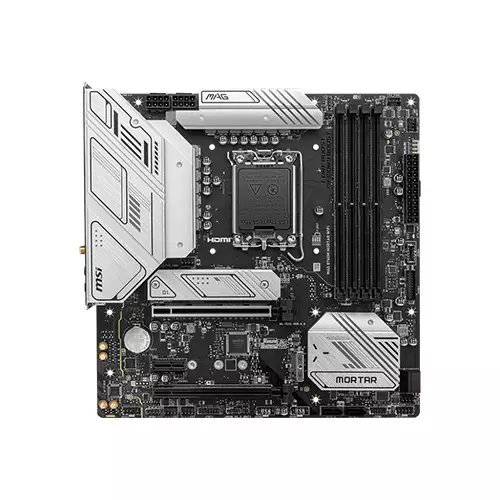

MSI MAG B760M MORTAR WIFI DDR5 12TH/13TH GEN MOTHERBOARD
MSI MAG B760M MORTAR WIFI DDR5 12TH/13TH GEN MOTHERBOARD MSI MAG B760M MORTAR WIFI DDR5 12TH/13TH GEN MOTHERBOARD - 1 MSI MAG B760M MORTAR WIFI DDR5 12TH/13TH GEN MOTHERBOARD - 2 MSI MAG B760M MORTAR WIFI DDR5 12TH/13TH GEN MOTHERBOARD - 3 MSI MAG B760M MORTAR WIFI DDR5 12TH/13TH GEN MOTHERBOARD - 4

MSI MAG B760M MORTAR WIFI DDR5 12TH/13TH GEN MOTHERBOARD

2 Reviews
Stock : In Stock
PID : P0402506184
Brand : MSI
Model : MAG B760M MORTAR WIFI
Warranty : 3 Years
  • Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 7000+(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2x M.2 slot, Intel Wi-Fi 6E

🎮 FREE LOGITECH F310 WITH PC BUILD

Product Pricing

Discount Price

৳26,000 ৳29,500
+ Available Payment Method

EMI Start From*

৳915

PRODUCT SPECIFICATIONS

Processor

Supported CPU Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

LGA1700

Mainboard

Chipset INTEL B760

Memory

Memory 4x DDR5, Maximum Memory Capacity 192GB

Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/
5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7000+ MHz

• 1DPC 2R Max speed up to 6600+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5600+ MHz



Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile

Storage

Supported Storage 2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

Graphics

Graphics 1x HDMI™

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz

Networking & Connectivity

LAN Realtek® 2.5Gbps LAN
WiFi Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth Supports Bluetooth® 5.3, FIPS, FISMA

Audio & Microphone

Audio Realtek® ALC897 Codec

7.1-Channel USB High Performance Audio

Supports S/PDIF output

Ports

Slots 2x PCI-E x16 slot

Supports x16/x4

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Internal I/O Ports 1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

4x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x TBT connector (JTBT, supports RTD3)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports
External I/O Ports USB 2.0

DisplayPort 1.4

USB 3.2 Gen 2 10Gbps Type-A

2.5G LAN Port

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

HDMI™ 2.1 Port

USB 3.2 Gen 2x2 20Gbps Type-C

Optical S/PDIF OUT
USB 4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)
HDMI 1x HDMI™

Special Features

Special Features 4x EZ Debug LED

Others

Other Features Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Support for Windows® 11 64-bit, Windows® 10 64-bit

Physical Specification

Form Factor mATX
Dimension mATX

243.84mmx243.84mm

Warranty Information

Warranty 3 Years

PRODUCT DESCRIPTION

MSI MAG B760M MORTAR WIFI DDR5 12TH/13TH GEN MOTHERBOARD

MSI MAG B760M MORTAR WIFI DDR5 12th/13th gen Motherboard. The MSI PRO B760M-A WIFI DDR4 12th/13th Gen Motherboard is an advanced motherboard that supports 12th/13th Gen Intel® Core™ processors, Pentium® Gold, and Celeron® processors. It features an Intel B760 chipset and an LGA1700 CPU socket. The motherboard supports a maximum memory capacity of 192GB through its 4x DDR5 memory slots with a memory support of 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz. The onboard graphics of the MSI PRO B760M-A WIFI DDR4 12th/13th Gen Motherboard includes 1x HDMI™ and 1x DisplayPort that support up to 4K 60Hz resolution. The motherboard also features 2x PCI-E x16 slots, 1x PCI-E x1 slot, 2x M.2 slots, and 4x SATA 6G storage options. In terms of connectivity, the motherboard has 4x USB 2.0 (rear), 4x USB 2.0 (front), 2x USB 3.2 Gen1 Type-A (front), 3x USB 3.2 Gen2 Type-A (rear), 1x USB 3.2 Gen2 Type-C (front), and 1x USB 3.2 Gen2x2 Type-C (rear). It also features Realtek® 2.5Gbps LAN and Intel® Wi-Fi 6E with MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps and Bluetooth® 5.3 support.



The MSI PRO B760M-A WIFI DDR4 12th/13th Gen Motherboard has Realtek® ALC897 Codec with 7.1-Channel USB High Performance Audio and S/PDIF output. The motherboard also features various internal I/O ports including 1x Power Connector (ATX_PWR), 2x Power Connector (CPU_PWR), 1x CPU Fan, 1x Pump Fan, 4x System Fan, and 1x Front Audio (JAUD), among others. The motherboard measures 243.84mmx243.84mm and supports Windows® 11 64-bit and Windows® 10 64-bit operating systems. It is a micro ATX motherboard with 4x EZ Debug LED and several back panel ports such as USB 2.0, DisplayPort 1.4, USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN Port, Wi-Fi/Bluetooth Antenna, HD Audio Connectors, HDMI™ 2.1 Port, USB 3.2 Gen 2x2 20Gbps Type-C, and Optical S/PDIF OUT. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of MSI Motherboard available at Techland BD is well recognized. The large selection of MSI Motherboard available at Techland BD is well recognized.
