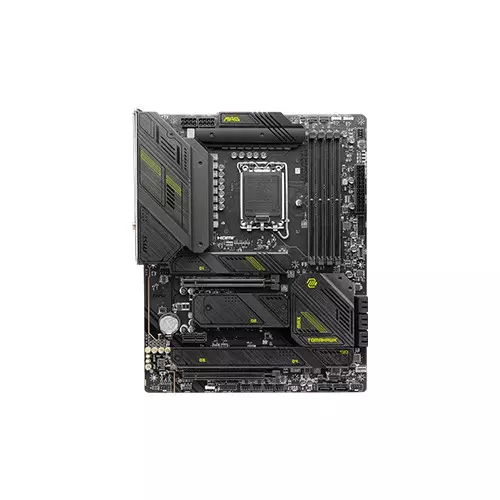

MSI MAG Z790 TOMAHAWK MAX WIFI 12th/13th Gen DDR5 MOTHERBOARD

MSI MAG Z790 TOMAHAWK MAX Motherboard in Bangladesh

The MSI MAG Z790 TOMAHAWK MAX Motherboard: Elevate Your PC Gaming and Performance.The MSI MAG Z790 TOMAHAWK MAX motherboard is a powerhouse engineered for those who demand uncompromising performance, seamless connectivity, and incredible expandability for their PC gaming and productivity needs. With the powerful Intel Z790 chipset at its core, this ATX-sized motherboard offers remarkable capabilities all around.

CPU Support:

The motherboard is your gateway to the power of 12th and 13th Gen Intel Core processors. It also offers compatibility with Pentium Gold and Celeron processors, all fitting neatly into the LGA 1700 socket.

Memory:

With four DDR5 UDIMM slots, the motherboard reaches an enormous maximum memory capacity of 192GB. You can take your system's memory speeds to the extreme, supporting frequencies from 5000 MHz to an overclocking frequency of 7800 MHz+. Intel XMP 3.0 OC support ensures you can maximize your memory's potential.

Onboard Graphics:

Enjoy immersive visuals with the motherboard's 1x HDMI 2.1 port and 1x DisplayPort, delivering resolutions up to 4K at 60Hz and 8K at 60Hz, respectively. Please note that these features are available for processors with integrated graphics.

Expansion Slots:

With two PCI-E x16 slots and one PCI-E x1 slot, the motherboard has plenty of room for expansion cards, SSDs, and graphics cards. These slots support various PCIe generations to cater to your specific requirements.

Storage:

The MSI MAG Z790 TOMAHAWK MAX delivers a variety of storage options with four M.2 slots and eight SATA 6G connectors. M.2_1 boasts PCIe 5.0 x4 support, while M.2_2, M.2_3, and M.2_4 support PCIe 4.0 x4/SATA mode. RAID capabilities are available for both SATA and M.2 NVMe storage devices, including RAID 0, 1, 5, and 10.

USB and networking:

Connect effortlessly using multiple USB ports, including USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, and USB 3.2 Gen2x2 Type C. The motherboard also features an Intel 2.5G LAN for lightning-fast wired networking and Wi-Fi 7 for seamless wireless connectivity. Wi-Fi is pre-installed in the M.2 (Key-E) slot and supports speeds up to 5.8 GHz, with Bluetooth 5.4 enhancing wireless connectivity.

Audio:

Experience immersive audio with the Realtek ALC4080 Codec, offering 7.1-channel USB high-performance audio. It also supports up to 32-bit/384 kHz playback on the front panel, delivering exceptional audio quality.

Internal I/O and LED Features:

The motherboard provides extensive internal connectivity options, including numerous fan connectors, USB ports, RGB LED connectors, and more. Additionally, the motherboard boasts EZ Debug LED for straightforward troubleshooting.

Back Panel Ports:

The back panel offers a multitude of ports, including DisplayPort, USB 3.2 Gen 1, Gen 2, and Gen 2x2 Type C, 2.5G LAN, Wi-Fi/Bluetooth, audio connectors, HDMI, Clear CMOS, Flash BIOS, and a variety of USB ports, ensuring that all your external connectivity needs are met.

Operating System Compatibility:

This motherboard is fully compatible with both Windows 11 64-bit and Windows 10 64-bit, ensuring that you have the flexibility to choose your preferred operating system.

PCB Dimension:

The MSI MAG Z790 TOMAHAWK MAX adheres to the ATX form factor, measuring 243.84mm x 304.8mm, making it suitable for various PC cases.

The MSI MAG Z790 TOMAHAWK MAX is a motherboard built for enthusiasts and gamers seeking top-tier performance, memory support, connectivity, and expandability. As it supports DDR5 memory, Wi-Fi 7, and the newest Intel processors, it is a great option if you want to build a high-performance PC that can tackle any task. Bangladesh's top motherboard
