Product Information

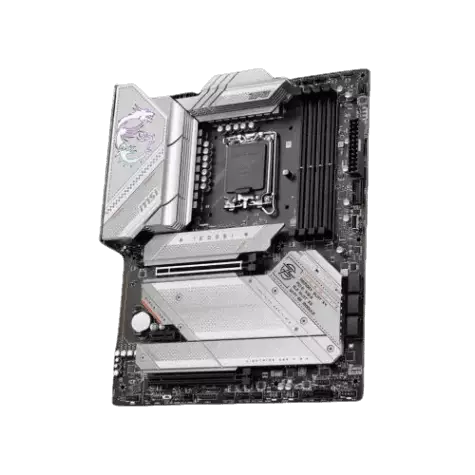

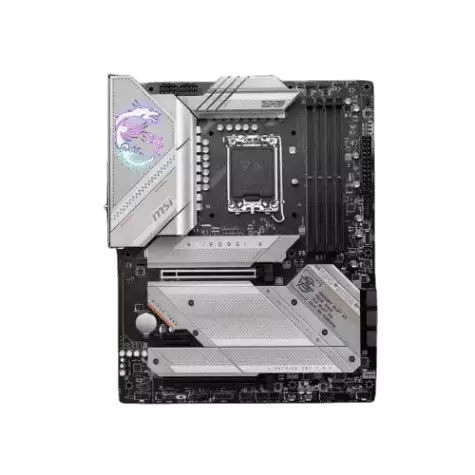

MSI MPG Z790 EDGE WIFI 13TH & 12TH GEN ATX MOTHERBOARD
⌨️ PC BUILD + FREE KL-139 KEYBOARD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
LGA 1700
Mainboard
Memory
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Storage
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports
2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
7x SATA 6G
Graphics
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Networking & Connectivity
Audio & Microphone
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Ports
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
Physical Specification
243.84mmx304.8mm
Warranty Information
PRODUCT DESCRIPTION
MSI MPG Z790 EDGE WIFI 13TH & 12TH GEN ATX MOTHERBOARD PRICE IN BD
The MSI MPG Z790 EDGE WIFI 13th & 12th Gen ATX Motherboard, a powerful and feature-packed motherboard designed for gamers and PC enthusiasts. This cutting-edge motherboard is available at Techland BD and offers a wide range of advanced technologies and connectivity options to enhance your gaming and computing experience. The MSI MPG Z790 EDGE WIFI supports 12th and 13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors, providing excellent performance for both gaming and demanding applications. It features the INTEL Z790 chipset and LGA 1700 socket, ensuring compatibility with the latest processors. With its 4 DDR5 memory slots, the motherboard supports a maximum memory capacity of 192GB. It offers high-speed memory support ranging from 4800MHz to an impressive overclocking frequency of 7200+ MHz, allowing you to achieve faster and smoother multitasking and gaming performance. Connectivity is a key focus of this motherboard, with features such as 2.5G LAN, Wi-Fi 6E, and Bluetooth 5.3. The Intel® 2.5Gbps LAN ensures fast and stable wired connections, while the pre-installed Intel® Wi-Fi 6E module enables high-speed wireless connections with MU-MIMO support and 160MHz bandwidth. The Bluetooth 5.3 support allows seamless wireless peripheral connectivity. With its extensive I/O options, the MSI MPG Z790 EDGE WIFI provides convenient connectivity for various peripherals, including USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, and USB 3.2 Gen2x2 ports. It also features multiple addressable RGB LED connectors and an EZ Debug LED system for easy troubleshooting. Whether you're a gamer, content creator, or PC enthusiast, this motherboard is an excellent choice to build a powerful and feature-rich system. Get yours today at Techland BD and take your gaming and computing to the next level.
