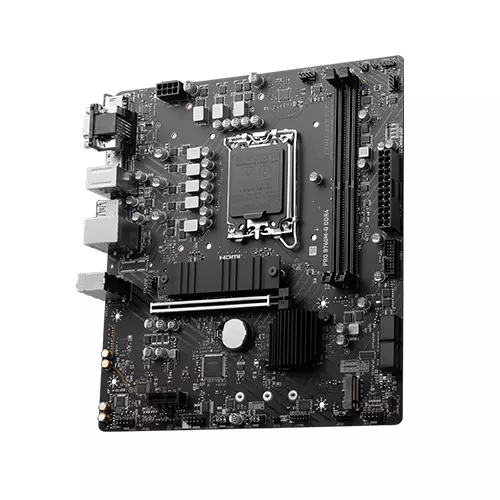

MSI PRO B760M-G DDR4 12TH & 13TH GEN MATX MOTHERBOARD

MSI PRO B760M-G DDR4 MATX MOTHERBOARD IN BD

This is a mATX motherboard that supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors with an LGA 1700 socket. It has an INTEL B760 chipset and supports DDR4 memory with 4 slots and a maximum capacity of 128GB. The memory speed supported is up to 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) and supports dual-channel mode. It also supports Intel Extreme Memory Profile (XMP). The motherboard has multiple graphics options including 1x HDMI, 1x DisplayPort, and 1x VGA. The HDMI supports a maximum resolution of 4K 30Hz, DisplayPort supports up to 4K 60Hz, and VGA supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz. The LAN Port is Realtek RTL8111H Gigabit LAN. The motherboard has 4x USB 2.0 ports (Rear) and 4x USB 2.0 ports (Front), 1x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front), and 1x USB 3.2 Gen2 Type C (Rear). It also.

supports 2x M.2 slots and 4x SATA 6G ports with RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. This motherboard has special features like 4x EZ Debug LED and supports non-ECC, un-buffered memory. It also supports overclocking with a maximum frequency of 4800+ MHz for 1DPC 1R, 4600+ MHz for 1DPC 2R, 4400+ MHz for 2DPC 1R, and 4000+ MHz for 2DPC 2R. The M.2_1 slot supports PCIe 4.0 x4 and 2280/2260/2242 devices, and the M.2_2 slot supports PCIe 4.0 x4/SATA mode and 2280/2260/2242 devices. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of MSI Motherboard available at Techland BD is well recognized. The large selection of MSI Motherboard available at Techland BD is well recognized.
