Product Information

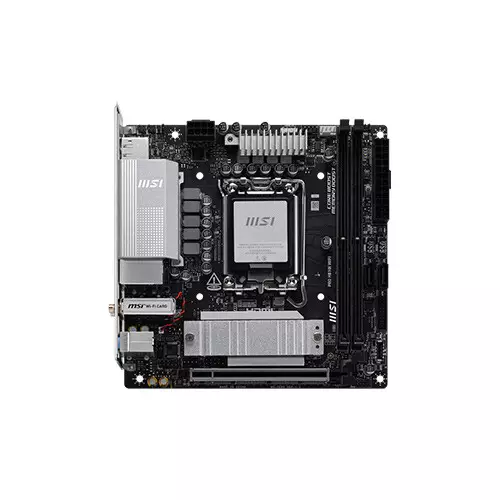

MSI PRO H810I WIFI Intel DDR5 Mini-ITX Motherboard
Memory size - 128GB
Memory Type - DDR5
Form factor - Mini-ITX
Chipset - INTEL H810
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Supports Intel Core Ultra Processors
(Series 2) LGA 1851
INTEL H810
Memory
2x DDR5 UDIMM, Maximum
Memory Capacity 128GB
Memory Support DDR5
6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400 MT/s
• 1DPC 2R Max speed up to 6400 MT/s
Supports Intel® POR Speed
and JEDEC Speed
Supports Intel® XMP 3.0
Supports Dual-Controller
Dual-Channel mode
Supports Non-ECC,
Un-buffered memory
Supports CUDIMM
Storage
1x M.2
M.2_1 Source (From Chipset)
supports up to PCIe 4.0 x4 ,
supports 2280 devices
2x SATA 6G
Graphics
1x HDMI
Support HDMI 2.1,
maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4,
maximum resolution of 4K 60Hz*
Networking & Connectivity
Intel I226 2.5Gbps LAN
Wi-Fi 7
The Wireless module is pre-installed
in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX,
2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Audio & Microphone
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Ports
1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0
supports up to x16 (From CPU)
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
1x System Fan
1x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB
LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
DisplayPort
USB 5Gbps Type-A
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMITM
USB 20Gbps Type-C
USB 2.0
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
Software
Support for Windows 11 64-bit
Others
LED FEATURE - 4x EZ Debug LED
1x EZ Memory Detection LED
Physical Specification
Mini-ITX
Warranty Information
3 years
PRODUCT DESCRIPTION
MSI PRO H810I WIFI Intel DDR5 Mini-ITX Motherboard in Bangladesh
MSI PRO H810I WIFI Intel DDR5 Mini-ITX Motherboard is a compact yet powerful solution for modern PC builds, now available in Bangladesh at Tech Land BD at the best price. Designed with the Intel H810 chipset and LGA 1851 socket, this motherboard supports the latest Intel® Core™ Ultra Series 2 processors, delivering exceptional performance for gaming, content creation, and productivity. Equipped with 2x DDR5 UDIMM slots, it supports up to 128GB of memory with speeds up to 6400MT/s, ensuring lightning-fast multitasking and superior system responsiveness. The Mini-ITX form factor makes it perfect for small form factor builds without compromising on performance. For visuals, it includes HDMI™ 2.1 and DisplayPort 1.4, both supporting 4K resolution at 60Hz, ideal for stunning display clarity. Expansion is made possible with a PCIe 5.0 x16 slot for the latest GPUs, while storage options include 1x PCIe 4.0 M.2 slot and 2x SATA 6Gb/s ports, providing fast and versatile storage solutions. Networking is robust with Intel® I226 2.5Gbps LAN and next-gen Wi-Fi 7 with MU-MIMO and Bluetooth® 5.4, ensuring ultra-fast wireless connectivity and seamless device pairing. The rear I/O panel features multiple USB options, including USB 20Gbps Type-C, USB 10Gbps, and USB 5Gbps ports, offering flexible and high-speed connectivity for modern peripherals. Enhanced with Realtek® ALC897 7.1-channel audio, EZ Debug LED, and RGB support, it combines performance with style and ease of use. Compact, efficient, and feature-packed, the MSI PRO H810I WIFI is an excellent choice for users in Bangladesh seeking a high-performance Mini-ITX motherboard from Tech Land BD at the best price.What CPUs are compatible?
It supports Intel Core Ultra processors (LGA 1851 socket).
How much DDR5 RAM can it handle?
2 DIMM slots supporting up to 128GB DDR5 memory.
Does it support PCIe 5.0?
Yes, it has a PCIe 5.0 x16 slot.
