Product Information

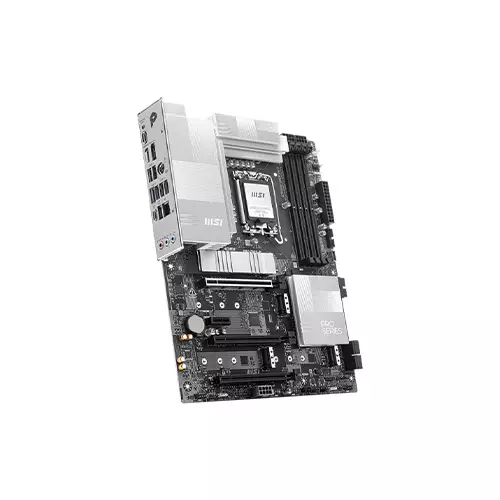

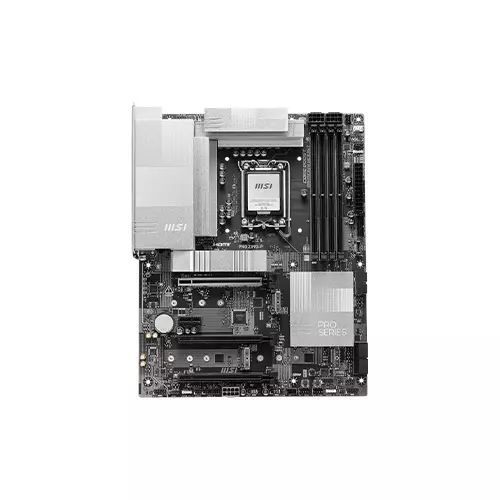

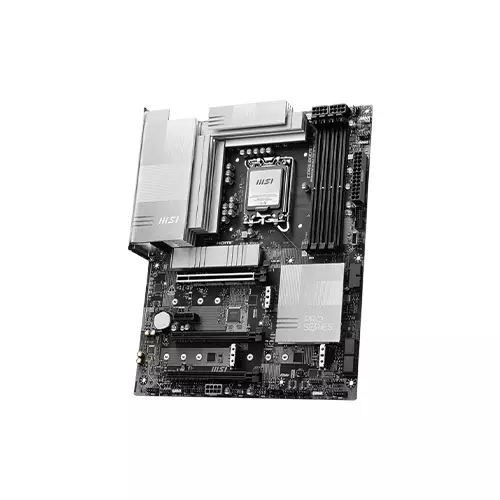

MSI PRO Z890-P LGA 1851 DDR5 ATX Motherboard
⌨️ PC BUILD + FREE KL-139 KEYBOARD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
LGA 1851
Mainboard
Memory
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Storage
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Graphics
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over
USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Networking & Connectivity
Audio & Microphone
7.1-Channel High-Definition Audio
Ports
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Rear Panel I/O Ports
1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
Special Features
Others
Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices
Physical Specification
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
243.84mmx304.8mm
Technical Info
Warranty Information
PRODUCT DESCRIPTION
MSI PRO Z890-P LGA 1851 DDR5 ATX Motherboard in Bangladesh
MSI PRO Z890-P LGA 1851 DDR5 ATX Motherboard is a high-performance motherboard designed for power users, gamers, and professionals seeking cutting-edge technology and robust connectivity. Now available at Tech Land BD, this motherboard is powered by the Intel Z890 chipset, supporting the latest Intel Core Ultra Processors (Series 2) with an LGA 1851 socket, delivering exceptional computing power and efficiency. Equipped with four DDR5 UDIMM slots, it supports up to 256GB of memory, with overclocking speeds reaching 9200+ MT/s, ensuring smooth multitasking and lightning-fast performance. For graphics output, the MSI PRO Z890-P features HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4 (USB Type-C DisplayPort 2.1), supporting resolutions up to 8K@60Hz for stunning visuals. Expansion options include three PCI-E x16 slots (one PCIe 5.0, two PCIe 4.0) and one PCI-E x1 slot, providing flexibility for graphics cards, storage, and additional peripherals. The Realtek ALC897 codec delivers 7.1-channel high-definition audio, ensuring immersive sound quality.
Storage capabilities are robust, featuring four M.2 slots (supporting PCIe 5.0 and PCIe 4.0) and four SATA 6G ports, offering fast data transfer and flexible storage configurations. Additionally, the motherboard supports RAID 0, 1, 5, and 10 for both SATA and M.2 NVMe drives. Connectivity is top-tier, with Realtek 8126 5Gbps LAN ensuring ultra-fast network speeds, and extensive USB options, including USB 20Gbps Type-C, USB 10Gbps Type-A, and multiple USB 5Gbps ports for high-speed data transfer and peripheral support. Designed for stability and performance, the MSI PRO Z890-P includes EZ Debug LED, multiple RGB connectors, and advanced cooling solutions. It is fully compatible with Windows 11 64-bit and is an ideal choice for high-performance computing. Get yours now from Tech Land BD to experience top-tier motherboard performance!
